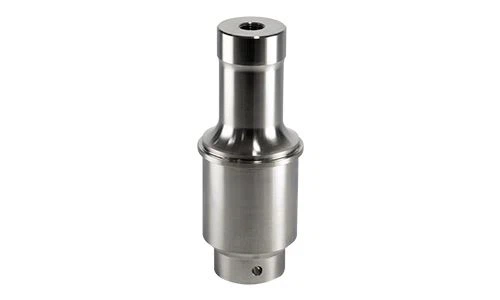

Titanium Qib 5 Ultrasonic Horn

Qhuav Taw Qhia

Nyob rau hauv daim ntawv thov ntawm high-kev siv ultrasound, xws li ua, vuam, crushing, tin dipping, thiab lwm yam, lub horn mas plays lub luag hauj lwm ntawm amplitude amplification thiab lub zog tsub zuj zuj.

Hauv cov ntawv thov no, titanium Qib 5 ultrasonic horn yuav tsum muaj qhov loj tshaj plaws ntawm qhov ua tau, thiab tom qab ntawd lwm yam tsis raug xaiv raws li kev siv sib txawv.

GR5 titanium alloy muaj cov txiaj ntsig zoo, xws li kev tiv thaiv corrosion zoo heev, me me ntom ntom, muaj zog tshwj xeeb, zoo toughness, thiab weldability. Nws tau ua tiav siv dav hauv aerospace, petrochemical, nkoj tsim, tsheb, tshuaj, thiab lwm yam haujlwm.

Tus qauv txheem: AMS 4911h, mil-t{2}}j, ASTM b265, dms1592f

Cov khoom tseem ceeb: titanium (TI) residue, 5.5 Tsawg dua lossis sib npaug ntawm txhuas (AL) Tsawg dua lossis sib npaug rau 6.8, 3.5 Tsawg dua lossis sib npaug ntawm vanadium (V) Tsawg dua lossis sib npaug 4.5, nitrogen (n) Tsawg dua lossis sib npaug sib npaug rau 0.{{10}}5, carbon (c) Tsawg dua lossis sib npaug rau 0.10, hydrogen (H) Tsawg dua lossis sib npaug li 0.015,

Hlau (FE) Tsawg dua lossis sib npaug rau {{0}}.30, oxygen (o) Tsawg dua lossis sib npaug rau 0.20

Lub cev muaj zog: ntom 4.51g / cm3

Mechanical zog: tensile lub zog: σ B Ntau tshaj los yog sib npaug rau 925mpa, yield zog σ B Ntau tshaj los yog sib npaug rau 870MPa: elongation: δ Ntau tshaj los yog sib npaug rau 10 feem pua

Corrosion kuj: Titanium muaj zog corrosion kuj nyob rau hauv ntau yam xov xwm, tshwj xeeb tshaj yog nyob rau hauv nruab nrab thiab oxidizing media. Nws kuj tuaj yeem siv rau hauv qee qhov dilute txo cov kua qaub, xws li nitric acid ntawm ntau qhov ntau ntawm qhov kub thiab txias mus rau qhov kub thiab txias.

Nws muaj qhov zoo corrosion kuj rau feem ntau alkali daws, xws li saturated daws ntawm barium hydroxide, calcium hydroxide thiab magnesium hydroxide nyob rau hauv chav tsev kub, tab sis tsis tuaj yeem siv rau boiling sodium hydroxide daws.

Titanium tsis corroded nyob rau hauv seawater, thiab nws kuj yog heev corrosion resistant nyob rau hauv feem ntau cov organic acids (tshwj tsis yog formic acid thiab oxalic acid). Nws muaj ZD corrosion kuj zoo heev hauv cov chlorine ntub dej, chlorite, hypochlorite thiab lwm yam tshuaj chloride. Cov tshuaj tiv thaiv corrosion hauv NaCl nce nrog nce pH tus nqi.

Daim ntawv thov teb: aerospace, chemical khoom, thiab lwm yam.
